Animation Coordination & IK

Multi-Paradigm Animation Coordination for Organic & Mechanical Creatures

---

Animation is where most landing systems fail visually. If the wing fold timing does not match the braking trajectory, or if talons hover 10 centimeters above a branch, the entire illusion collapses.

PERCH provides three distinct animation drivers alongside a dedicated Generic Rig Two-Bone IK Solver.

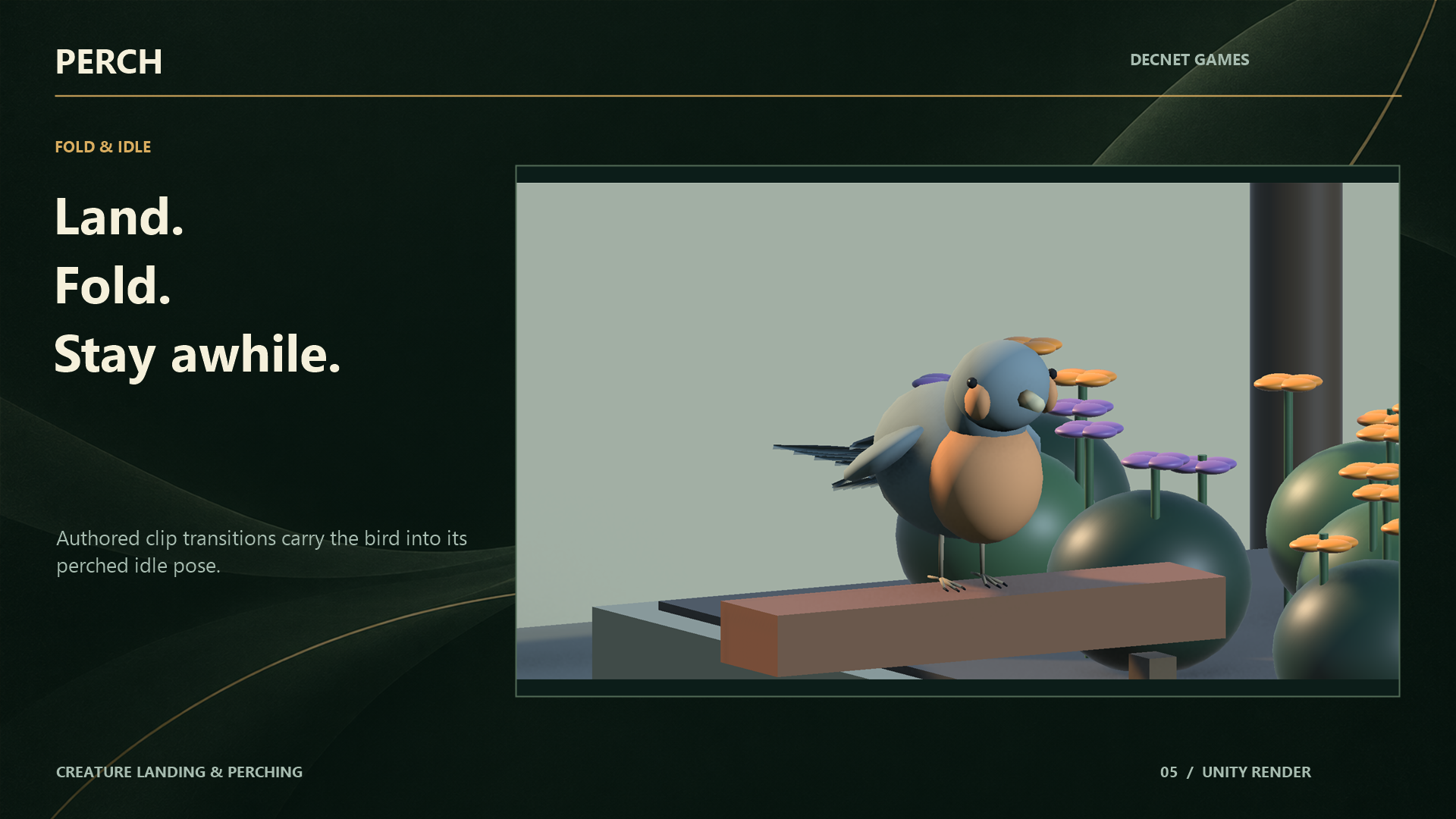

Procedural Wing Fold & Dwell Stance	Inspector Rig Bindings
Planted foot stance with smooth wing fold hold	Auto-detected wing bones and contact anchors

---

The Three Animation Paradigms

Depending on your asset pipeline, performance budget, and creature type, choose the driver that matches your workflow:

1. Clip Mode (PerchClipAnimationDriver)

For authored characters driven by standard Unity Mecanim Animator controllers:

• Interacts with Animator state machines using configurable parameters:
  • IsFlying (bool)
  • IsGliding (bool)
  • IsLanding (bool)
  • IsPerched (bool)
  • IsTakingOff (bool)
  • PhaseProgress (float, $0.0 \rightarrow 1.0$)
• Crossfade Timing: Uses CrossFadeInFixedTime ($0.15\text{s} - 0.25\text{s}$) to blend flight into flare and touchdown without pop.
• Root Motion Invariant: Disable root motion translation in your Animator; PERCH’s motor owns world translation.

2. Procedural Mode (PerchProceduralAnimationDriver)

For stylized creatures, background flocks, or mechanical drones that lack dedicated landing clips:

• Harmonic Wing Flapping: Evaluates continuous sinusoidal oscillations directly on wing bone transforms: \(\theta_{\text{wing}}(t) = A \cdot \sin(2\pi f t + \phi)\)
  • Frequency ($f$) and amplitude ($A$) scale dynamically with flight speed and banking angle.
  • Flares outward during approach and folds smoothly against the body upon touchdown.
• Perched Breathing & Sway: Applies subtle, low-frequency pitch and yaw balancing while perched, keeping creatures alive without translating locked feet.
• Rotor Spin-Down: For mechanical drones, rotates propeller transforms at configurable RPM, automatically decelerating to a stop upon contact and spooling up prior to launch.

3. Direct Playables Mixer (PerchPoseClipDriver)

Used in the flagship 06_RealSkinnedBirds.unity scene for maximum fidelity:

• Operates a custom Unity Playables Graph mixing five rig-specific authored clips: Flight, Glide, Landing/Fold, Perched Idle, and Takeoff.
• Stance Pinning: Calibrated toe markers and leg stance bones are held completely rigid during the unfold pause, eliminating any foot sliding while the wings prepare for launch.
• Restores Animator state cleanly on disable.

---

Generic Rig Two-Bone IK Solver

Unity’s built-in OnAnimatorIK is restricted to Humanoid avatars. Because virtually all birds, beasts, dragons, and insects on the Asset Store use Generic animation rigs, native Unity IK cannot place bird feet onto branches.

PERCH includes PerchTwoBoneIkSolver, an analytical, high-efficiency two-bone inverse kinematics solver built specifically for Generic rigs:

[Hip / RootJoint]
      \
       \ (Upper Leg)
        \
      [Knee / MidJoint]
        /
       / (Lower Leg)
      /
[Ankle / EndJoint] ===> Locked to Surface Collider Normal

Characteristics:

• Zero GC: Implemented as a lightweight C# struct/serializable helper class—not a heavy MonoBehaviour.
• Analytic Solution: Computes closed-form trigonometric joint rotations in sub-microsecond time.
• Joint Limits: Rejects extreme solutions that would hyper-extend or twist the joint unnaturally (ContactUnreachable).
• Pole Vector Hints: Supports optional pole targets to control knee bend orientation.

// Example IK setup via PerchRigBinding
var ik = new PerchTwoBoneIkSolver(hipBone, kneeBone, footBone);
ik.Weight = 1.0f;
ik.Solve(contactHitPoint, contactSurfaceRotation);

---

Rig Binding & Automated Bone Detection

Configuring bones on dozens of bird species can be tedious. The PerchRigBinding component includes AutoDetectVisualsAndBones():

1. In the Inspector, click Auto-Detect Bones.
2. PERCH parses the child transform hierarchy using intelligent naming heuristics:
   • Left Wing: Wing_L, Wing.L, LeftWing, wing_l
   • Right Wing: Wing_R, Wing.R, RightWing, wing_r
   • Legs & Talons: Leg_L, Foot_L, Talon_L, Toe_L
3. Automatically sets the Contact Anchor to the lowest mesh vertex cluster.
4. Generates a non-destructive visual wrapper to preserve clean (1, 1, 1) scale on the agent root.

[!WARNING] Single Pose Writer Invariant: Exactly one animation driver may write to a skeleton at any time. Never attach PerchProceduralAnimationDriver and PerchClipAnimationDriver to the same GameObject.
