PERCH Studio Master Hub

Unified Mission Control for Level Designers, Technical Artists & Engineers

Rather than forcing developers to jump between dozens of inspectors, menu items, and debugger tabs, PERCH consolidates its entire authoring and inspection workflow into a single master tool: PERCH Studio.

Open it via:

Menu: Window > PERCH > PERCH Studio or Tools > PERCH > PERCH Studio
Hotkey: Ctrl+Alt+P

Studio Master Overview

The Five Core Workflows

PERCH Studio is structured into five cohesive tabs:

+-----------------------------------------------------------------------------------+
|                                  PERCH STUDIO                                     |
+-----------------------------------------------------------------------------------+
| [1. HUD Telemetry] [2. Quick Authoring] [3. Scanner] [4. Rehearsal] [5. Scenes]  |
+-----------------------------------------------------------------------------------+

1. 5-Second Onboarding & Live Telemetry HUD

The moment you open Studio, the header bar presents an instant health check of your active scene:

World Status: Indicates whether a PerchWorld is active in the hierarchy.
Agent Count: Active flying, approaching, and perched creatures.
Slot Capacity: Total authored slots vs currently reserved/occupied slots.
Lease Integrity: Live counter of active leases, expired heartbeats, and contention status.
GC Allocations: Confirms steady-state 0 B managed heap allocations.

Studio Telemetry Panel

2. 1-Click Creature & Spot Authoring

Create Perch World: Instantiates a configured PerchWorld with optimal default spatial hash settings.
Author Single Perch: Adds a PerchSpot to the currently selected GameObject with normal/forward gizmos aligned.
Generate Line Perch: Generates evenly spaced landing slots across selected fence rails or branches.
Configure Creature: Opens the non-destructive Creature Setup Wizard, attaching PerchAgent, motor, flight provider, and rig bindings to an imported character.

3. Surface Candidate Geometry Scanner

Directly embedded within Studio, the scanner lets you select complex environment geometry (such as an entire village, rock wall, or ancient tree) and sample candidate landing points using physics raycasts. Inspect proposed points in the Scene View, filter by slope and height, and apply them with full Undo/Redo support.

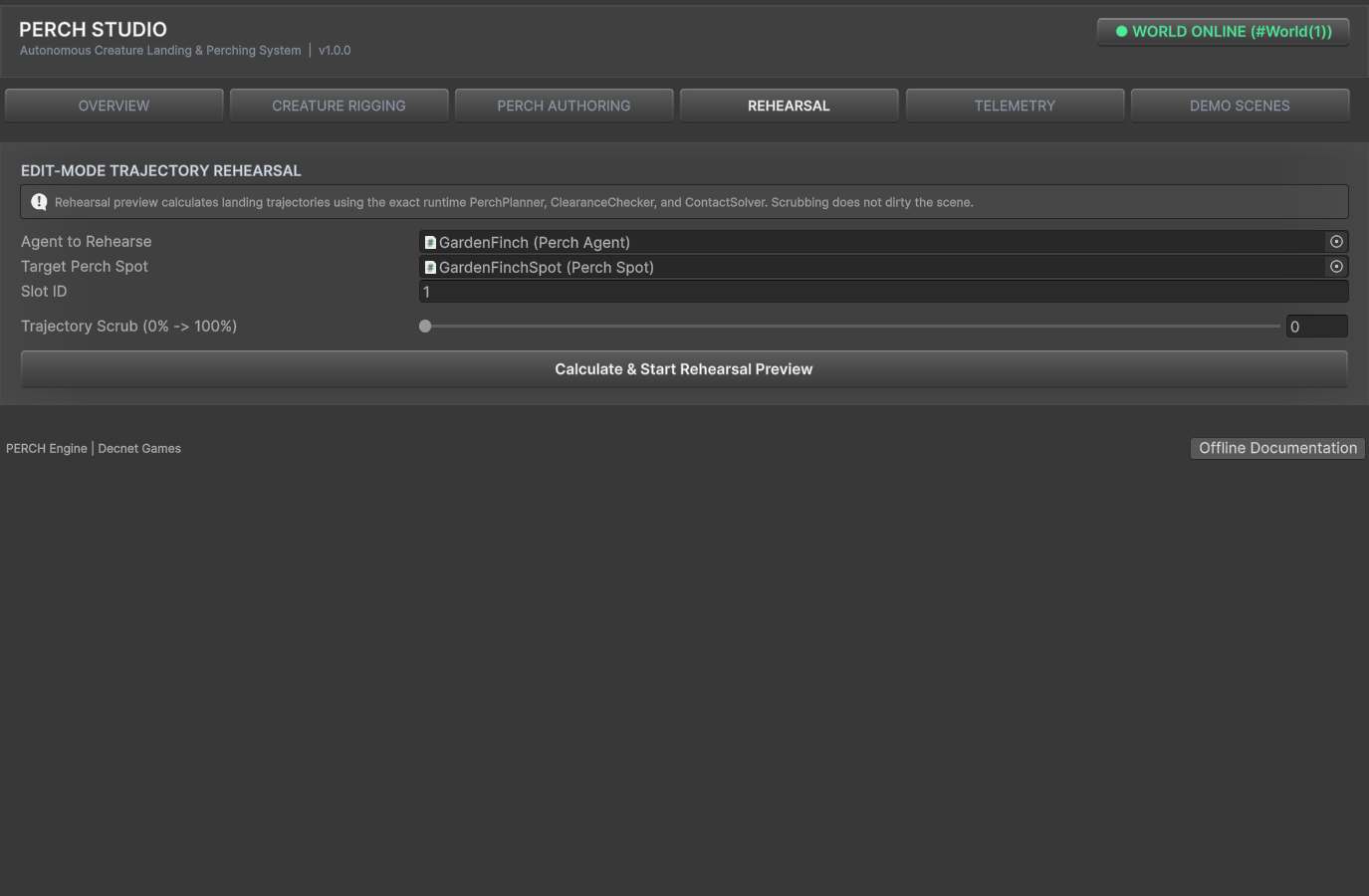

4. Edit-Mode Trajectory Rehearsal

Scrub approach and flare trajectories in Edit Mode without entering Play Mode. Studio instantiates a temporary, render-only ghost creature that follows the Hermite spline as you drag the time slider. Closing Studio or deselecting the tool immediately cleanses the preview object, leaving the scene completely untouched.

Studio Rehearsal Scrubbing

5. 1-Click Sample Scene Switcher

Quickly navigate between all 6 included demonstration scenes without digging through the Project folder:

00_Welcome: Single-bird first flight sandbox.
01_LivingCourtyard: 24-agent procedural flock environment.
02_MovingPlatform: Rocking and translating moving perch test.
03_FailureLab: Interactive test bench for all 24 failure codes.
04_BringYourCreature: Custom model integration template.
05_Benchmark: High-density 300-agent workload stress scene.
06_RealSkinnedBirds: Flagship interactive courtyard featuring Garden Finch and Willow Wren.

Studio Demo Scenes Switcher

Non-Destructive Design Guarantee

A core tenet of PERCH Studio is zero scene corruption:

All authoring actions are registered with Unity’s Undo system (Ctrl+Z).
Preview ghosts generated during rehearsal are marked with HideFlags.DontSave and strictly stripped of physics colliders and simulation scripts.
Switching scenes from the switcher prompts to save unsaved modifications, preventing lost work.
